Compact HCET S01/S06 Thermal Overload Switch Electric Motor Thermostat 5A-6A

HCET S01/S06 Bimetallic Thermal Protection Switch 5A-6A Compact Thermostat for Heating Pads, Tubular Motors & Transformers

The S01/S06 Bimetallic Temperature Control Switch is a self-heating-minimized thermal protector designed for precise temperature management in low to medium power applications. Engineered with a pressure-stable bimetal disc mechanism, it maintains consistent contact force across its operating range (-30°C to +200°C), ensuring reliable switching temperatures within ±5℃ tolerance even at full nominal loads. Optimized for embedding into windings or confined spaces. Ideal for heating systems (pet pads, electric blankets), electromechanical devices (tubular motors, coils), and power equipment (transformers).

Product feature:

• Zero Thermal Interference Design
  Self-heating ≤0.3°C at 6A load, ensuring switching accuracy remains within ±5℃.
• Arc Suppression Technology
  Snap-action bimetal disc achieves <3ms break time, reducing contact erosion even at 6A/125VAC inductive loads.
• Broad Temperature Customization
  Factory pre-set calibration from 50°C to 200°C (5°C increments), with optional on-site recalibration service.
• Vibration-Resistant Contacts
  Silver alloy contacts maintain 10,000+ cycles at rated current (6A DC).

Electrical Characteristics:

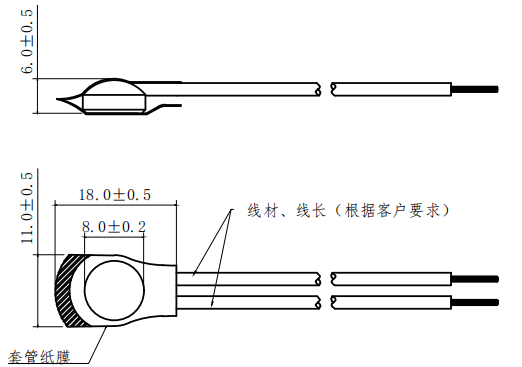

Dimension size

Product detail

Application
