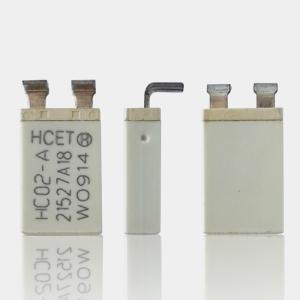

HC02 Series Motor Thermal Protector Thermal Cutout Switch Replacement for Otter DC 12V-30V for Automotive Motors

  • 1
  • 2
  • 3

Brand Name : HCET

Model Number : HC02-A

Certification : UL, ROHS

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 20000 pcs per carton

Product name : HC02 motor thermal protector

Material : plastic case

Temperature range : 60~170℃

Tolerance : ±8℃,±10℃

Voltage : 250V

Current : Customizable

Application : Automotive Motors

Contact Now

HC02 Series Motor Thermal Protector Thermal Cutout Switch Replacement for Otter DC 12V-30V for Automotive Motors


The HC02 Series Bimetallic Motor Overload Protector is a precision-engineered thermal protection device designed to safeguard DC motors

from overheating and current overloads in demanding automotive and industrial applications. Combining dual-sensitive bimetallic technology,

it responds to both temperature rise and excessive current, ensuring reliable protection for motors in critical systems such as automotive window regulators,

sunroof mechanisms, wiper motors, and HVAC actuators. Its compact, RoHS-compliant design meets strict automotive and industrial standards (IEC/UL),

making it ideal for OEMs seeking high-performance overload protection in space-constrained environments.


Product feature:

  • Dual-Sensitive Protection
    - Bimetallic Technology: Simultaneously monitors temperature and current, triggering instant circuit disconnection at preset thresholds (4-10s response time).
    - Wide Range: Adjustable trip current (1-30A) and temperature (60°C-180°C ±8°C) for precise motor protection.
  • Automotive-Grade Reliability
    - Engineered for DC 12V-30V automotive systems, including windshield wipers, power windows, sliding doors, and sunroof motors.
  • Global Compliance & Safety
    - RoHS certified.
  • Customizable Solutions
    - Optional terminal types and trip curve configurations for HVAC compressors, industrial pumps, and small appliances.
  • Electrical Characteristics:


60°℃~170℃
Operating temperature range, Customizable temperature.

4S~10S
Special action time can be customized
±8°C, ±10℃
Temperature Tolerance

1A~30A
The overload current tripping range can be customized according to customer's requirements.
1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics


Dimension size

HC02 Series Motor Thermal Protector Thermal Cutout Switch Replacement for Otter DC 12V-30V for Automotive Motors


Product detail

HC02 Series Motor Thermal Protector Thermal Cutout Switch Replacement for Otter DC 12V-30V for Automotive Motors


Application

HC02 Series Motor Thermal Protector Thermal Cutout Switch Replacement for Otter DC 12V-30V for Automotive Motors
